Industrial Engines > Model #5.0L GM

GM 5.0L Industrial Engine

These are brand new General Motors 5.0 Vortec industrial engines. They work in generators and are complete as shown. Engine parts, such as engine blocks, cylinder heads and crankshafts are readily available.
Industrial Engine Pictures Overview

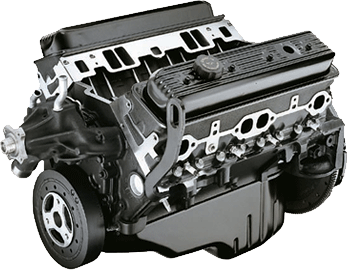

General Motors 5.0 Liter Vortec Industrial Engine front view


5.0L GM
Description A high-flow cylinder head with straighter intake ports and optimum compression ratio delivers impressive horsepower.
Increased cooling around hardened exhaust valve seats for added durability. Valvetrain features advanced design silent timing chain for added durability
and positive inlet valve stem seals for reduced oil consumption. Roller valve lifters for reduced friction and improved performance. Composite front timing cover for noise reduction and corrosion protection.
Common rear face on most GM Powertrain engines for easy hookup with housing.

General Data

Type 90 degree 5.0L V8
Displacement 305 CID (5001 cc)
Compression Ratio 9.4:1
Valve Config Pushrod Actuated Overhead Valves
Manufactured Toluca, Mexico
Valve Lifters Hydraulic Roller
Bore x Stroke 3.75 x 3.48 in (95.00
mm x 88.39 mm)
Main Bearing Caps 2-Bolt Cast Iron
Balance Method External
Intake Manifold Carburetor or Mixer
Firing Order 1-8-4-3-6-5-7-2
Oil Pan Capacity 5 qt
Fuel Types LPG or NG
Engine Rotation Clockwise (from the front)
Paint Protection Component Painted
Horsepower 126 hp @ 3000 rpm
(LP), 124 hp @ 3000 rpm (Natural
Torque 225 lb-ft @ 2500 rpm (LP),
240 lb-ft @ 2500 rpm (Natural Gas)
Shipping Weight 432 lb (196 kg)

Block Cast Iron
Cylinder Head Cast Iron
Intake Manifold Cast Iron
Crankshaft Nodular Iron
Camshaft Cast Iron
Pistons High Silicon Aluminum
Engine Sealing System
One-piece viton rear main seal
One-piece oil pan gasket
Composite graphite cylinder head
gaskets with stainless steel core
Non-asbestos gaskets throughout
Fuel System Options
Closed-Loop Fuel System Kit
Dual Fuel
LPG (Mixer, Throttle Body, Fuel Lock,
LPG W/Governor (Same As Above
w/Elec. Governor)
LPG W/Governor (Same As Above
w/Velocity Governor)
LPG Carb
NG/LPG Carb Dual Fuel
NG Carb
NG (Mixer, Throttle Body & Air
NG W/Governor (Same As Above
w/Elec. Governor)
Three Way Catalyst Available

(Correction to ISO 3046 / SAE J1228. Actual
power levels may vary depending on OEM
calibration and application. Power should be
limited for durability to 250 hp.)
