INDUSTRIAL ENGINES - GM 2.4L
GM 2.4L Industrial Engine
These are brand new General Motors Vortec 2400 liter industrial engines. They are found in the Hyster forklift trucks . Yale forklift trucks and Doosan applications. Engine parts are available for purchase, such as cylinder heads, crankshafts, gaskets and other parts. We can rebuild this engine on a custom build bases. Please call! |
|
| Industrial Engine Pictures |
Overview |
(No Intake Included) |
| Price |
$2795.00 |
| Model |
2.4L GM |
| Description |
Designed to work with gasoline, liquid propane gas and natural gas. Pistons have high silicon content for improved durability and noise reduction.
Sintered powdered-metal exhaust valve seat inserts for enhanced durability.
World-class engine sealing system for superior leak protection. DIS ignition system. Poly-V -belt harmonic balancer standard.
|
|
| General Data |
| Type |
2.4L L4 |
| Displacement |
146.7 cid (2405 cc) |
| Compression Ratio |
9.6:1 |
| Valve Config |
Single Overhead Cam |
| Manufactured |
Sao Jose, Brazil |
| Valve Lifters |
Radiused Follower, Hydraulic |
| Bore x Stroke |
3.44 in x 3.94 in (87.5 mm x 100 mm) |
| Balance Method |
Internal |
| Oil Pan Capacity |
4.8 qt (4.6L) with filter |
| Fuel Types |
Gasoline PFI or LPG/NG mixer |
| Engine Rotation |
Clockwise (from the front) |
| Paint Protection |
Painted |
| Horsepower |
76 hp @ 3000 rpm (Gasoline)
68 hp @ 3000 rpm (LPG)
64 hp @ 3000 rpm (NG)
36 hp @ 1800 rpm (Gasoline)
32 hp @ 1800 rpm (LPG)
30 hp @ 1800 rpm (NG)
|
| Torque |
133 lb-ft @ 3000 rpm (Gasoline)
119 lb-ft @ 3000 rpm (LPG)
112 lb-ft @ 3000 rpm (NG)
105 lb-ft @ 1800 rpm (Gasoline)
93 lb-ft @ 1800 rpm (LPG)
87 lb-ft @ 1800 rpm (NG) |
|
| Materials |
| Block |
Cast Iron |
| Cylinder Head |
Aluminum |
| Crankshaft |
Cast Iron |
| Pistons |
High Silicon Content Aluminum |
| Exhaust Seat |
Sintered Powdered Metal Insert |
| Gaskets |
Non-Asbestos |
|

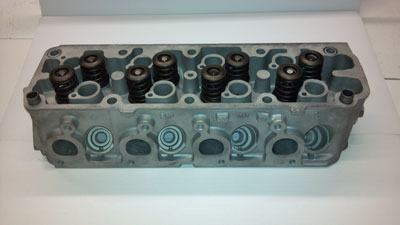

GM 2.4L Industrial Engine Parts
New Price: $550.00
Comes w/Lifters
These New 2.4 GM Cylinder Heads Fit Hyster Forklift, Yale and Doostan Forklifts as well. These are brand new cylinder heads that come with new lifters installed.
| Description |
Our Part # |
Notes |
Price |
| Pistons |
P2.4V |
Set of 4 |
240.00 |
| Rings |
P2.4VR |
Set of 4 |
187.00 |
| Intake Gasket |
IG2.4V |
|
8.00 |
| Camshaft |
CS2.4V |
|
455.00 |
| Lifters |
L2.4V |
8 Pack |
170.00 |
| Followers |
F2.4V |
8 Pack |
150.00 |
| Rod Bearings |
RB2.4V |
4 Pack |
35.00 |
| Main Bearings |
MB2.4V |
Complete Set |
80.00 |
| Timing Belt |
TB2.4V |
|
150.00 |
| Freeze Plugs |
FB2.4V |
Compete Set |
9.00 |
| Gaskets |
2.4VGAS |
Complete Set |
140.00 |
| Head Gasket |
HG2.4V |
|
55.00 |
| Oil Pump |
OP2.4V |
|
87.00 |
| Rear Seal |
RS2.4V |
|
20.00 |
| Crankshaft |
CSH2.4V |
|
520.00 |
| Crankshaft Pulley |
CP2.4V |
2 Kinds Available |
115.00 |
| Camshaft Seal |
CSeal2.4V |
|
20.00 |
| Front Crank Seal |
FOS2.4V |
|
73.00 |
| Exhaust Gasket |
EG2.4V |
|
25.00 |
| Valve Stem Seals |
VS2.4V |
8 Pack |
70.00 |
| Intake Valves |
IV2.4V |
4 Pack |
180.00 |
| Exhaust Valves |
EV2.4V |
4 Pack |
100.00 |
| Oil Filter |
OF2.4V |
|
6.00 |
| Water Pump |
WP2.4V |
|
320.00 |
| Water Pump Seal |
WPO2.4V |
O Ring |
6.00 |
| Oil Pan Gasket |
OPG2.4V |
RTV |
26.00 |
| Wire Set |
WS2.4V |
Check Application |
60.00 |
| Tensioner |
TN2.4V |
|
240.00 |
| Head Bolts |
HB2.4V |
Set of 10 |
44.00 |
| Timing Cover |
TCBP2.4V |
Back Part ONLY |
35.00 |
| |
TCBUL2.4V |
Front Half ONLY |
26.00 |
| Oil Pressure Switch |
OPS2.4V |
Check Application |
14.00 |
| Head Set |
HS2.4V |
(No Valve Stem Seals) |
85.00 |
| Dipstick Tube |
D2.4VT |
Tube ONLY |
58.00 |
| Dipstick |
D2.4V |
Check Application |
20.00 |
| Thermostat Housing |
TH2.4V |
|
72.00 |
| Cam Cover Gasket |
CCG2.4V |
|
75.00 |
| Coil Pack |
CP2.4V |
Check Application |
440.00 |
| Starter |
ST2.4V |
Check Application |
550.00 |
| Cylinder Head |
CH2.4V |
New w/Lifters |
550.00 |
| Thermostat Seal |
CS2.4V |
|
6.50 |
